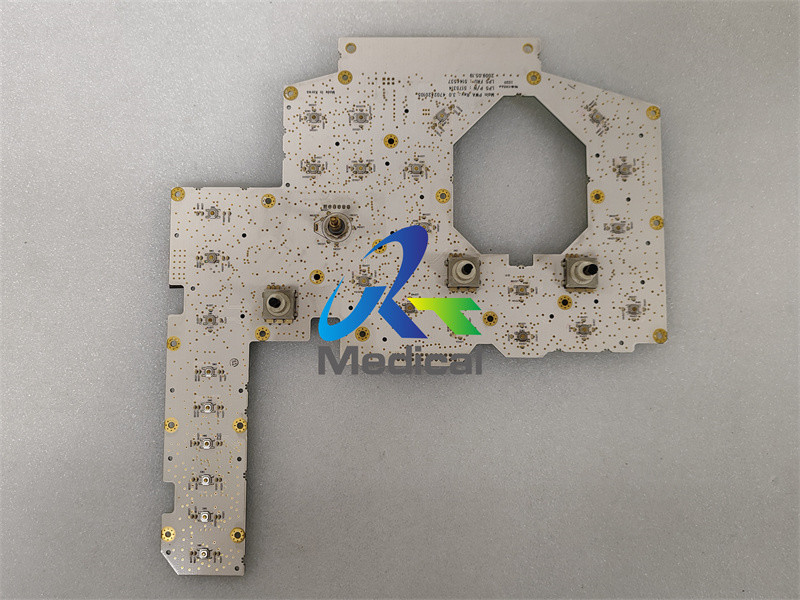

GE LOGIQ P5 Control Panel
1.P/N: 5144537/5175314
2.Pre-owned original one ,in excellent condition
3.We provide 60 days warranty
Various GE/Siemens/Toshiba/Hitachi/ Biosound/Medison Ultrasonic Boards(Parts) are within our repair/ maintenance range.
Other related GE Ultrasonic Parts we can provide:
| Brand | System | Description |
| GE | Logiq P3 | Probe Connector board 3PP 5314411-3 |
| GE | Logiq P3 | Numeric Keyboard 5315106 |
| GE | Logiq A5 | Syscon board 5177270 |
| GE | Logiq V3 | MST PWA board 5599379 |
| GE | Logiq V5 | monitor |
| GE | Logiq P5 | APS High voltage power supply 5140505/ 5166108/5329667 |
| GE | Logiq P5 | SYSCONPM 5177848-3 |
| GE | Logiq P5/P6 | Trackball TAS4725N /5144543-3 |
| GE | Logiq P5 | CTX Assy(Launch board) PN :5140493 Rev 2 |
| GE | Logiq P5 | PMSOM board(P/N:5178410-2) |
| GE | Logiq P5/P6 | contral board(P/N: 5144536/5252253) |
| GE | Logiq P5 | P3RLY
(P/N:5144579/5140497) |
| GE | Logiq P5 | 4D motor driver board 5391434 |
| GE | Logiq P5 | CL1TRX ASSEMBLY 5144578 / 5140492 |
| GE | Logiq P5 | CPU mainboard 5168431 |
| GE | Logiq P5 | LCD monitor 5140510 / 5172043 |
Knowledge Point
About GE Logiq P5 Control Panel
The Control Panel of GE LOGIQ P5 is an important part of the ultrasound diagnostic instrument. It provides an interface for users to interact with the equipment, allowing doctors or operators to set examination parameters, control image display, select probes, etc. Although there is no direct detailed specification or structural description of the Control Panel of GE LOGIQ P5, we can infer its possible functions and features based on the characteristics of the control panel of a general ultrasound diagnostic instrument.
- The Control Panel of GE LOGIQ P5 may include the following basic elements and functions:
1.Display screen: used to display ultrasound images and examination parameters to help doctors observe and analyze patient conditions. The display screen usually has high resolution and adjustable brightness and contrast to adapt to different examination environments and needs.
Buttons and knobs: There are a large number of buttons and knobs on the control panel to control various functions of the device. These buttons and knobs may include:
2.Power switch: used to turn the device on or off.
Probe selection key: allows users to select different probes to adapt to different examination sites.
Imaging mode selection key: such as B mode (brightness mode), M mode (motion mode), D mode (Doppler mode), etc., used to select different imaging modes.
3.Parameter adjustment keys: used to adjust image gain, depth, focus and other parameters to obtain the best image quality.
Freeze/Store key: used to freeze the current image or store important images for subsequent analysis.
Other function keys: such as measurement keys (used to measure distance, area, etc.), annotation keys (used to add annotations to the image), etc.
4.Touch screen: The control panel of some modern ultrasound diagnostic instruments may also be equipped with a touch screen, making the operation more intuitive and convenient. The touch screen can be used to select menu items, adjust parameters, annotate images, etc.
Trackball or mouse: In some designs, the control panel may also include a trackball or mouse for more precise operation and selection on the screen.
5.Emergency stop button: In some cases, the control panel may also be equipped with an emergency stop button to quickly cut off the power supply of the equipment or stop the inspection process in an emergency.
We provide professional ultrasonic plate repair services.10+years of professional maintenance service team.
If you need any product, please feel free to contact us.
Various Ultrasound Systems that we served
| GE Ultrasound System |
| LOGIQ P5, LOGIQ P6, LOGIQ S7, LOGIQ S8, VOLUSON 730, VOLUSON S8, VOLUSON P8, VOLUSON S6, VOLUSON S20, VOLUSON P8, VOLUSON E10, VIVID E9, LOGIQ BOOK, LOGIQ 5, LOGIQ 7, LOGIQ 9, LOGIQ E9, LOGIQ F6, LOGIQ F8, VIVID I, VIVID Q, VOLUSON I, VOLUSON E, VIVID S5, VIVID 3, VIVID 7... |
| Hitachi-Aloka Ultrasound System |
| F31, F37, SSD-3500, SSD-3500, SSD-4000, SSD-5000, ALPHA 5, ALPHA 6, ALPHA 7, ALPHA 10, PROSOUND F75, HI VISION AVIUS, HI VISION PREIRUS, EUB-5500, EUB-6500, EUB-7500, EUB-8500, Arietta 60, Arietta 70, Ascendus... |
| Siemens Ultrasound System |
S2000,S3000,SC2000,X300,P500,OXana,Juniper,Omini...
|
