GE LOGIQ E9 Ultrasound GTX2.3 Board 5201044-2 for Ultrasound System

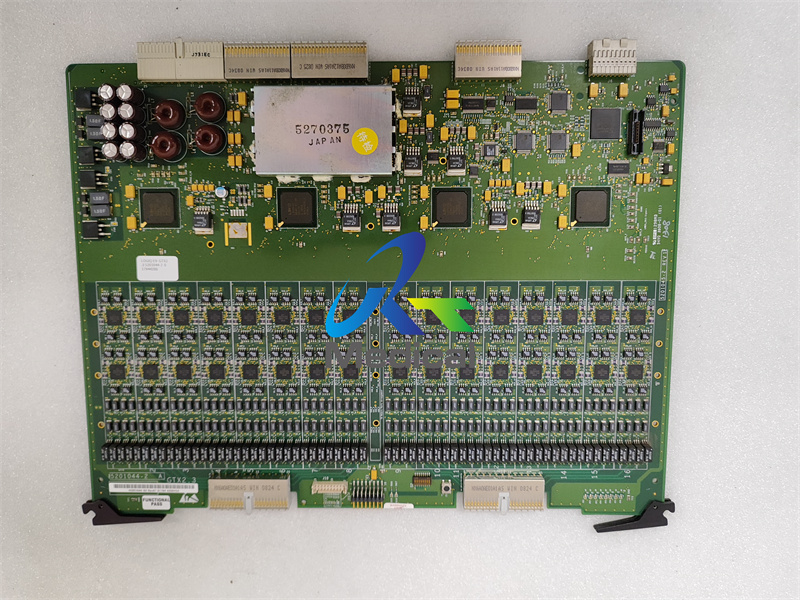

GE LOGIQ E9 Ultrasound GTX2.3 Board 5201044-2

1.Part number: 5201044-2
2.Pre-owned original one ,in excellent condition
3.We provide 60 days warranty

Various GE//Siemens/Toshiba/Hitachi/ Biosound ultrasonic boards are within our repair/ maintenance range.

Other ultrasound parts related to GE that we can offer:

Knowledge Point

GE LOGIQ E9 GTX2.3 Board

1. Overview of GTX2.3 Board
GTX2.3 Board is a key component in GE LOGIQ E9 ultrasound diagnostic instrument, usually classified as part of the signal transmitter board (Transmitter Boards). This circuit board is responsible for driving the ultrasound probe to generate ultrasonic beams in the ultrasound diagnostic instrument, and is an important part of the ultrasound imaging process.

2. Functions and features of GTX2.3 Board
Ultrasonic emission: GTX2.3 Board receives control signals from the back end processor (BEP), generates high-voltage pulse signals to drive the ultrasonic probe chip to vibrate, thereby emitting ultrasonic beams.
Collaborative work: GTX2.3 Board works with other front-end circuit boards (such as signal receiving board, probe interface board, etc.) to ensure stable transmission and reception of ultrasonic signals.
High efficiency: Using advanced electronic technology and materials, GTX2.3 Board can provide stable and efficient ultrasonic transmission performance to meet the needs of clinical ultrasound diagnosis.

3. Position and function of GTX2.3 Board in GE LOGIQ E9
In GE LOGIQ E9 ultrasound diagnostic instrument, GTX2.3 Board is part of the front end processing system (Front End Processor Card Rack), located at the back end of the ultrasound probe, and together with the probe interface board, signal receiving board, etc., forms the processing link of ultrasound signals. Through the ultrasound transmission function of GTX2.3 Board, combined with the signal receiving and processing capabilities of the signal receiving board, high-quality ultrasound images are finally generated for doctors to diagnose.

4. Maintenance and replacement of GTX2.3 Board
Daily maintenance: Clean and inspect GTX2.3 Board regularly to ensure that its working environment is clean and dry, and avoid dust and moisture from damaging the circuit board.
Troubleshooting: When the ultrasound diagnostic instrument has a fault related to GTX2.3 Board (such as unstable ultrasound transmission, image quality degradation, etc.), troubleshooting and repair are required. This usually requires professional technicians to operate, including circuit board detection, repair or replacement.
Spare parts replacement: If GTX2.3 Board cannot be repaired or reaches the end of its service life, spare parts replacement is required. We can provide GE original high-quality accessories, which can be replaced to ensure the performance and stability of the equipment.
