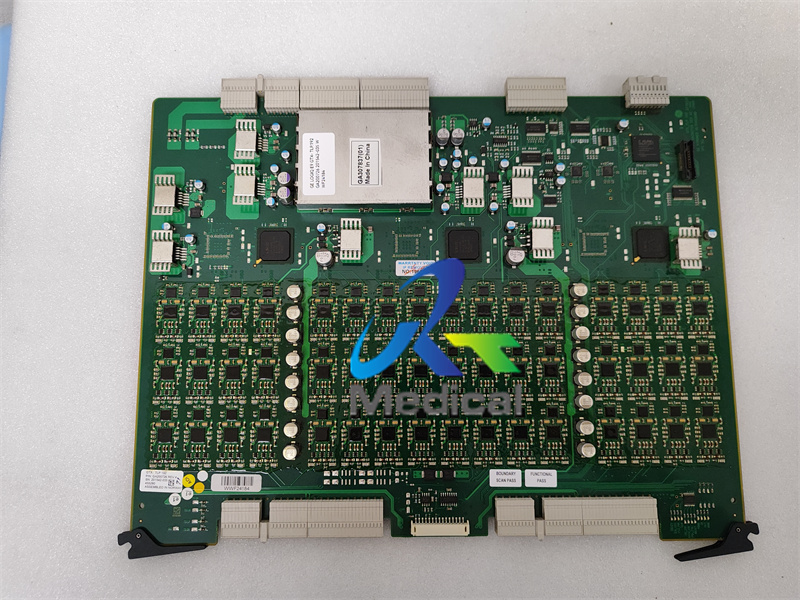

GE LOGIQ E9 Ultrasound GTX-TLP 192 Board GA200726
1.Part number:GA200726
2.Pre-owned original one ,in excellent condition
3.We provide 60 days warranty
Various GE//Siemens/Toshiba/Hitachi/ Biosound ultrasonic boards are within our repair/ maintenance range.
Other ultrasound parts related to GE that we can offer:
| Brand | System | Description | Part Number |
| GE | Logiq P5 | APS Power Supply | 5140505/5166108/5329667 |
| GE | Logiq P5 | CPU mainboard | 5168431 |
| GE | Logiq P5 | SYSCONPM | 5177848-3 |
| GE | Logiq P6 | CPU Mainboard | |
| GE | Logiq P6 | PST Power Supply | 5245004/5244555 |
| GE | Logiq P6 | SYSCONML | 5252326-3 |
| GE | Logiq S7/Logiq S8 | CPS Power supply | 6626600 R02/5413249-3 |
| GE | Logiq S7 | BF128 transmitting board | 5392446 |
| GE | Logiq S7 | GFS board | 5371196 |
| GE | Logiq S8 | BF192 Beamformer | 5357234-2 |
| GE | Logiq S8 | GFS board | 5371196-2/5455247 |
| GE | Logiq E9/vivid E9 | GTX | GA200726 |
| GE | Logiq E9 | MRX Board | 5393908/5393912 |
Knowledge Point
GE LOGIQ E9 GTX-TLP 192 Board
1. Overview of GTX-TLP 192 Board
GTX-TLP 192 Board is a key component in GE LOGIQ E9 ultrasound diagnostic instrument, usually classified as part of the Front End Processor Card Rack. This circuit board plays an important role in the ultrasound diagnostic instrument. It is mainly responsible for driving the ultrasound probe chip, receiving the ultrasonic reflection signal, and performing preliminary signal processing, and finally sending the RF signal to the Back End Processor (BEP) for image analysis and post-processing.
2. Features and functions of GTX-TLP 192 Board
Driving probe: GTX-TLP 192 Board can drive the ultrasound probe to ensure that the probe emits a stable ultrasonic beam.
Signal reception and processing: Receive the ultrasonic reflection signal from the probe and perform preliminary signal processing to provide high-quality RF signals for subsequent image analysis.
System coordination: As a key component in the ultrasound diagnostic instrument, GTX-TLP 192 Board works with other hardware components to ensure the stable operation of the entire system.
3. Notes
When replacing the GTX-TLP 192 Board or performing other maintenance operations, please be sure to follow the maintenance manual and operating procedures of the GE LOGIQ E9 ultrasound diagnostic instrument to ensure the safety and effectiveness of the operation.
If you have any questions or are unsure during maintenance, you can contact our technical support team or professional maintenance personnel for help. We provide replacement/repair services for a variety of GE accessories.
Various Ultrasound Systems that we served
| GE Ultrasound System |
| LOGIQ P5, LOGIQ P6, LOGIQ S7, LOGIQ S8, VOLUSON 730, VOLUSON S8, VOLUSON P8, VOLUSON S6, VOLUSON S20, VOLUSON P8, VOLUSON E10, VIVID E9, LOGIQ BOOK, LOGIQ 5, LOGIQ 7, LOGIQ 9, LOGIQ E9, LOGIQ F6, LOGIQ F8, VIVID I, VIVID Q, VOLUSON I, VOLUSON E, VIVID S5, VIVID 3, VIVID 7... |
| Hitachi-Aloka Ultrasound System |
| F31, F37, SSD-3500, SSD-3500, SSD-4000, SSD-5000, ALPHA 5, ALPHA 6, ALPHA 7, ALPHA 10, PROSOUND F75, HI VISION AVIUS, HI VISION PREIRUS, EUB-5500, EUB-6500, EUB-7500, EUB-8500, Arietta 60, Arietta 70, Ascendus... |
| Siemens Ultrasound System |
S2000,S3000,SC2000,X300,P500,OXana,Juniper,Omini...
|
